Stainless Steel Enclosures

Contact Us

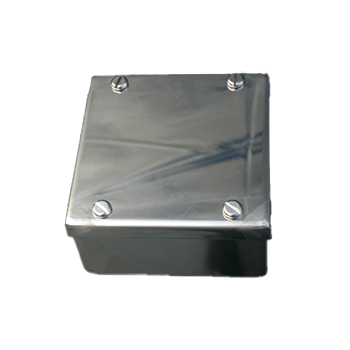

TCE 1
Length: 100 | Width: 100 | Height: 50 | Rated: IP65

Manufactured in 18 gauge 304 stainless steel and polished finish. The all welded enclosure is complete with internal earth stud and a gasketed lid which is secured by 4 captivated screws.

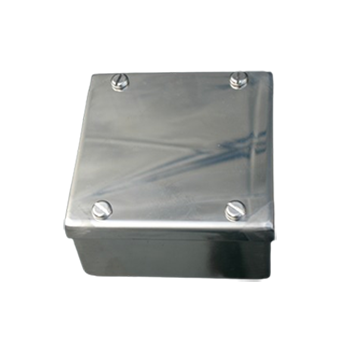

TCE 4
Length: 100 | Width: 100 | Height: 85 | Rated: IP65

Manufactured in 18 gauge 304 stainless steel and polished finish. The all welded enclosure is complete with internal earth stud and a gasketed lid which is secured by 4 captivated screws.

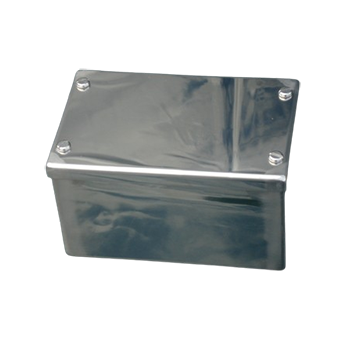

TCE 5
Length: 160 | Width: 100 | Height: 85 | Rated: IP65

Manufactured in 18 gauge 304 stainless steel and polished finish. The all welded enclosure is complete with internal earth stud and a gasketed lid which is secured by 4 captivated screws.

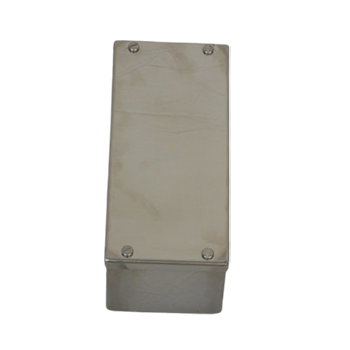

TCE 6
Length: 220 | Width: 100 | Height: 85 | Rated: IP65

Manufactured in 18 gauge 304 stainless steel and polished finish. The all welded enclosure is complete with internal earth stud and a gasketed lid which is secured by 4 captivated screws.

TCE 6B
Length: 280 | Width: 100 | Height: 85 | Rated: IP65

Manufactured in 18 gauge 304 stainless steel and polished finish. The all welded enclosure is complete with internal earth stud and a gasketed lid which is secured by 4 captivated screws.

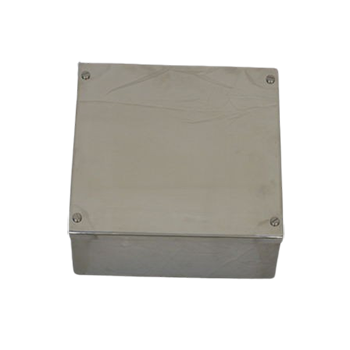

TCE 7
Length: 160 | Width: 160 | Height: 85 | Rated: IP65

Manufactured in 18 gauge 304 stainless steel and polished finish. The all welded enclosure is complete with internal earth stud and a gasketed lid which is secured by 4 captivated screws.

Gear Plate: is made from 4mm thick aluminium. This sturdy gearplate is ideal for drilling and tapping on when mounting components.

TCE 8
Length: 220 | Width: 160 | Height: 85 | Rated: IP65

Manufactured in 18 gauge 304 stainless steel and polished finish. The all welded enclosure is complete with internal earth stud and a gasketed lid which is secured by 4 captivated screws.

Gear Plate: is made from 4mm thick aluminium. This sturdy gearplate is ideal for drilling and tapping on when mounting components.

TCE 9
Length: 220 | Width: 220 | Height: 85 | Rated: IP65

Manufactured in 18 gauge 304 stainless steel and polished finish. The all welded enclosure is complete with internal earth stud and a gasketed lid which is secured by 4 captivated screws.

Gear Plate: is made from 4mm thick aluminium. This sturdy gearplate is ideal for drilling and tapping on when mounting components.

TCE 10
Length: 280 | Width: 220 | Height: 85 | Rated: IP65

Manufactured in 18 gauge 304 stainless steel and polished finish. The all welded enclosure is complete with internal earth stud and a gasketed lid which is secured by 4 captivated screws.

Gear Plate: is made from 4mm thick aluminium. This sturdy gearplate is ideal for drilling and tapping on when mounting components.

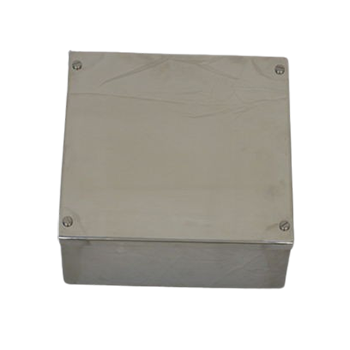

TCE 11
Length: 280 | Width: 280 | Height: 85 | Rated: IP65

Manufactured in 18 gauge 304 stainless steel and polished finish. The all welded enclosure is complete with internal earth stud and a gasketed lid which is secured by 4 captivated screws.

Gear Plate: is made from 4mm thick aluminium. This sturdy gearplate is ideal for drilling and tapping on when mounting components.

TCE 12
Length: 220 | Width: 220 | Height: 125 | Rated: IP65

Manufactured in 18 gauge 304 stainless steel and polished finish. The all welded enclosure is complete with internal earth stud and a gasketed lid which is secured by 4 captivated screws.

Gear Plate: is made from 4mm thick aluminium. This sturdy gearplate is ideal for drilling and tapping on when mounting components.

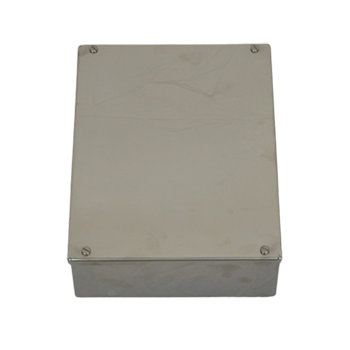

TCE 13
Length: 280 | Width: 220 | Height: 125 | Rated: IP65

Manufactured in 18 gauge 304 stainless steel and polished finish. The all welded enclosure is complete with internal earth stud and a gasketed lid which is secured by 4 captivated screws.

Gear Plate: is made from 4mm thick aluminium. This sturdy gearplate is ideal for drilling and tapping on when mounting components.

TCE 14
Length: 280 | Width: 280 | Height: 150 | Rated: IP65

Manufactured in 18 gauge 304 stainless steel and polished finish. The all welded enclosure is complete with internal earth stud and a gasketed lid which is secured by 4 captivated screws.

Gear Plate: is made from 4mm thick aluminium. This sturdy gearplate is ideal for drilling and tapping on when mounting components.

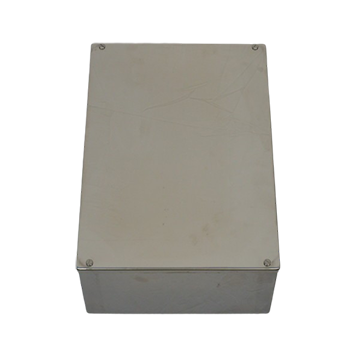

TCE 15
Length: 400 | Width: 280 | Height: 150 | Rated: IP65

Manufactured in 18 gauge 304 stainless steel and polished finish. The all welded enclosure is complete with internal earth stud and a gasketed lid which is secured by 4 captivated screws.

Gear Plate: is made from 4mm thick aluminium. This sturdy gearplate is ideal for drilling and tapping on when mounting components.
