Stainless Steel Weatherproof Cabinets
THSS1
Height: 356 | Width: 356 | Depth: 150 | Rated: IP65
Main Features: each cabinet is complete with hinged door, gearplate, catches, earth stud and sealant. Manufactured in 18 gauge 304 Stainless Steel and polished finish.
Cabinet Body: consists of all welded corners and has troughed lip around the front perimeter. Four gearplate fixing studs are welded in the inside rear, also an earthing stud on the bottom.
Door: is supported by two hinges and is removable by lifting vertically when open. A lip is folded into the top inside edge to prevent capillary action. A PVC flame retardant sealant resistive to fungus solvent and weather is attached to the inside of the door. Two catches are mounted on each door which is opened with a screwdriver. These may be replaced with a lock and keys as an extra.
Gear Plate: is made from 4mm thick aluminium. This sturdy gearplate is ideal for drilling and tapping on when mounting components.

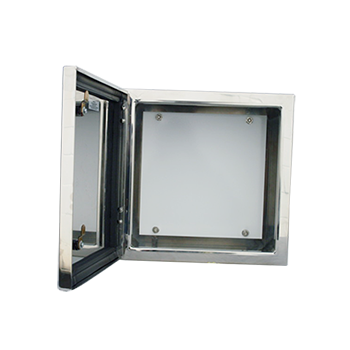

THSS1B
Height: 356 | Width: 356 | Depth: 200 | Rated: IP65
Main Features: each cabinet is complete with hinged door, gearplate, catches, earth stud and sealant. Manufactured in 18 gauge 304 Stainless Steel and polished finish.
Cabinet Body: consists of all welded corners and has troughed lip around the front perimeter. Four gearplate fixing studs are welded in the inside rear, also an earthing stud on the bottom.
Door: is supported by two hinges and is removable by lifting vertically when open. A lip is folded into the top inside edge to prevent capillary action. A PVC flame retardant sealant resistive to fungus solvent and weather is attached to the inside of the door. Two catches are mounted on each door which is opened with a screwdriver. These may be replaced with a lock and keys as an extra.
Gear Plate: is made from 4mm thick aluminium. This sturdy gearplate is ideal for drilling and tapping on when mounting components.
THSS2
Height: 356 | Width: 534 | Depth: 150 | Rated: IP65
Main Features: each cabinet is complete with hinged door, gearplate, catches, earth stud and sealant. Manufactured in 18 gauge 304 Stainless Steel and polished finish.
Cabinet Body: consists of all welded corners and has troughed lip around the front perimeter. Four gearplate fixing studs are welded in the inside rear, also an earthing stud on the bottom.
Door: is supported by two hinges and is removable by lifting vertically when open. A lip is folded into the top inside edge to prevent capillary action. A PVC flame retardant sealant resistive to fungus solvent and weather is attached to the inside of the door. Two catches are mounted on each door which is opened with a screwdriver. These may be replaced with a lock and keys as an extra.
Gear Plate: is made from 4mm thick aluminium. This sturdy gearplate is ideal for drilling and tapping on when mounting components.

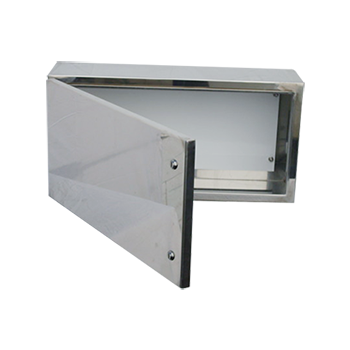

THSS3
Height: 356 | Width: 712 | Depth: 200 | Rated: IP65
Main Features: each cabinet is complete with hinged door, gearplate, catches, earth stud and sealant. Manufactured in 18 gauge 304 Stainless Steel and polished finish.
Cabinet Body: consists of all welded corners and has troughed lip around the front perimeter. Four gearplate fixing studs are welded in the inside rear, also an earthing stud on the bottom.
Door: is supported by two hinges and is removable by lifting vertically when open. A lip is folded into the top inside edge to prevent capillary action. A PVC flame retardant sealant resistive to fungus solvent and weather is attached to the inside of the door. Two catches are mounted on each door which is opened with a screwdriver. These may be replaced with a lock and keys as an extra.
Gear Plate: is made from 4mm thick aluminium. This sturdy gearplate is ideal for drilling and tapping on when mounting components.

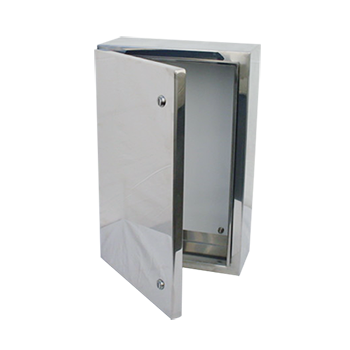

THSS4
Height: 534 | Width: 356 | Depth: 150 | Rated: IP65
Main Features: each cabinet is complete with hinged door, gearplate, catches, earth stud and sealant. Manufactured in 18 gauge 304 Stainless Steel and polished finish.
Cabinet Body: consists of all welded corners and has troughed lip around the front perimeter. Four gearplate fixing studs are welded in the inside rear, also an earthing stud on the bottom.
Door: is supported by two hinges and is removable by lifting vertically when open. A lip is folded into the top inside edge to prevent capillary action. A PVC flame retardant sealant resistive to fungus solvent and weather is attached to the inside of the door. Two catches are mounted on each door which is opened with a screwdriver. These may be replaced with a lock and keys as an extra.
Gear Plate: is made from 4mm thick aluminium. This sturdy gearplate is ideal for drilling and tapping on when mounting components.
THSS4B
Height: 534 | Width: 356 | Depth: 200 | Rated: IP65
Main Features: each cabinet is complete with hinged door, gearplate, catches, earth stud and sealant. Manufactured in 18 gauge 304 Stainless Steel and polished finish.
Cabinet Body: consists of all welded corners and has troughed lip around the front perimeter. Four gearplate fixing studs are welded in the inside rear, also an earthing stud on the bottom.
Door: is supported by two hinges and is removable by lifting vertically when open. A lip is folded into the top inside edge to prevent capillary action. A PVC flame retardant sealant resistive to fungus solvent and weather is attached to the inside of the door. Two catches are mounted on each door which is opened with a screwdriver. These may be replaced with a lock and keys as an extra.
Gear Plate: is made from 4mm thick aluminium. This sturdy gearplate is ideal for drilling and tapping on when mounting components.

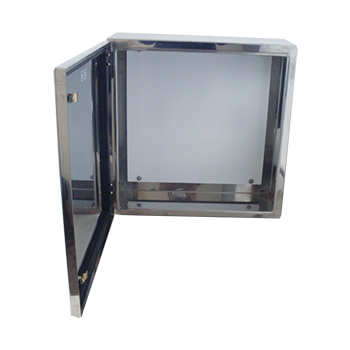

THSS5
Height: 534 | Width: 534 | Depth: 150 | Rated: IP65
Main Features: each cabinet is complete with hinged door, gearplate, catches, earth stud and sealant. Manufactured in 18 gauge 304 Stainless Steel and polished finish.
Cabinet Body: consists of all welded corners and has troughed lip around the front perimeter. Four gearplate fixing studs are welded in the inside rear, also an earthing stud on the bottom.
Door: is supported by two hinges and is removable by lifting vertically when open. A lip is folded into the top inside edge to prevent capillary action. A PVC flame retardant sealant resistive to fungus solvent and weather is attached to the inside of the door. Two catches are mounted on each door which is opened with a screwdriver. These may be replaced with a lock and keys as an extra.
Gear Plate: is made from 4mm thick aluminium. This sturdy gearplate is ideal for drilling and tapping on when mounting components.

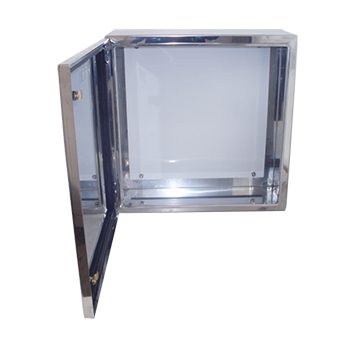

THSS5B
Height: 534 | Width: 534 | Depth: 200 | Rated: IP65
Main Features: each cabinet is complete with hinged door, gearplate, catches, earth stud and sealant. Manufactured in 18 gauge 304 Stainless Steel and polished finish.
Cabinet Body: consists of all welded corners and has troughed lip around the front perimeter. Four gearplate fixing studs are welded in the inside rear, also an earthing stud on the bottom.
Door: is supported by two hinges and is removable by lifting vertically when open. A lip is folded into the top inside edge to prevent capillary action. A PVC flame retardant sealant resistive to fungus solvent and weather is attached to the inside of the door. Two catches are mounted on each door which is opened with a screwdriver. These may be replaced with a lock and keys as an extra.
Gear Plate: is made from 4mm thick aluminium. This sturdy gearplate is ideal for drilling and tapping on when mounting components.

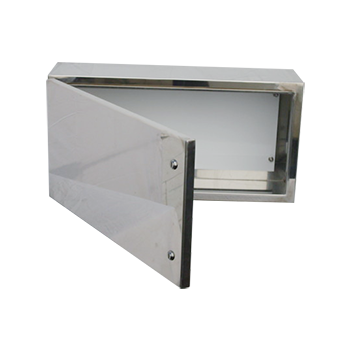

THSS6
Height: 534 | Width: 712 | Depth: 200 | Rated: IP65
Main Features: each cabinet is complete with hinged door, gearplate, catches, earth stud and sealant. Manufactured in 18 gauge 304 Stainless Steel and polished finish.
Cabinet Body: consists of all welded corners and has troughed lip around the front perimeter. Four gearplate fixing studs are welded in the inside rear, also an earthing stud on the bottom.
Door: is supported by two hinges and is removable by lifting vertically when open. A lip is folded into the top inside edge to prevent capillary action. A PVC flame retardant sealant resistive to fungus solvent and weather is attached to the inside of the door. Two catches are mounted on each door which is opened with a screwdriver. These may be replaced with a lock and keys as an extra.
Gear Plate: is made from 4mm thick aluminium. This sturdy gearplate is ideal for drilling and tapping on when mounting components.

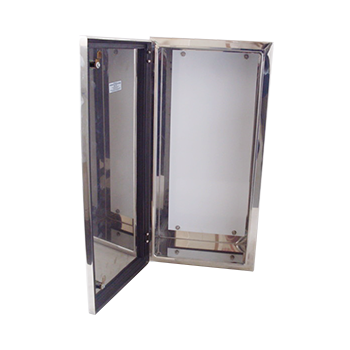

THSS7
Height: 712 | Width: 356 | Depth: 200 | Rated: IP65
Main Features: each cabinet is complete with hinged door, gearplate, catches, earth stud and sealant. Manufactured in 18 gauge 304 Stainless Steel and polished finish.
Cabinet Body: consists of all welded corners and has troughed lip around the front perimeter. Four gearplate fixing studs are welded in the inside rear, also an earthing stud on the bottom.
Door: is supported by two hinges and is removable by lifting vertically when open. A lip is folded into the top inside edge to prevent capillary action. A PVC flame retardant sealant resistive to fungus solvent and weather is attached to the inside of the door. Two catches are mounted on each door which is opened with a screwdriver. These may be replaced with a lock and keys as an extra.
Gear Plate: is made from 4mm thick aluminium. This sturdy gearplate is ideal for drilling and tapping on when mounting components.

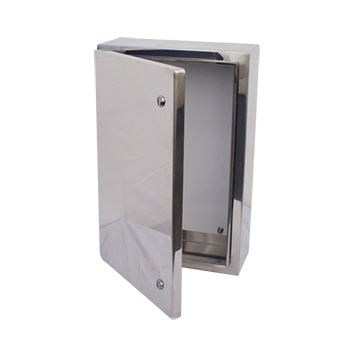

THSS8
Height: 712 | Width: 534 | Depth: 200 | Rated: IP65
Main Features: each cabinet is complete with hinged door, gearplate, catches, earth stud and sealant. Manufactured in 18 gauge 304 Stainless Steel and polished finish.
Cabinet Body: consists of all welded corners and has troughed lip around the front perimeter. Four gearplate fixing studs are welded in the inside rear, also an earthing stud on the bottom.
Door: is supported by two hinges and is removable by lifting vertically when open. A lip is folded into the top inside edge to prevent capillary action. A PVC flame retardant sealant resistive to fungus solvent and weather is attached to the inside of the door. Two catches are mounted on each door which is opened with a screwdriver. These may be replaced with a lock and keys as an extra.
Gear Plate: is made from 4mm thick aluminium. This sturdy gearplate is ideal for drilling and tapping on when mounting components.

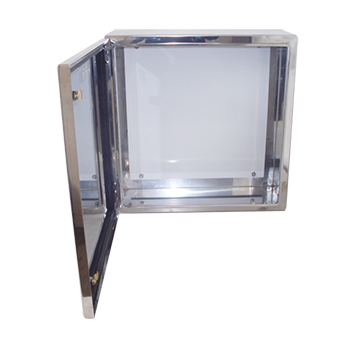

THSS9
Height: 712 | Width: 712 | Depth: 200 | Rated: IP65
Main Features: each cabinet is complete with hinged door, gearplate, catches, earth stud and sealant. Manufactured in 18 gauge 304 Stainless Steel and polished finish.
Cabinet Body: consists of all welded corners and has troughed lip around the front perimeter. Four gearplate fixing studs are welded in the inside rear, also an earthing stud on the bottom.
Door: is supported by two hinges and is removable by lifting vertically when open. A lip is folded into the top inside edge to prevent capillary action. A PVC flame retardant sealant resistive to fungus solvent and weather is attached to the inside of the door. Two catches are mounted on each door which is opened with a screwdriver. These may be replaced with a lock and keys as an extra.
Gear Plate: is made from 4mm thick aluminium. This sturdy gearplate is ideal for drilling and tapping on when mounting components.

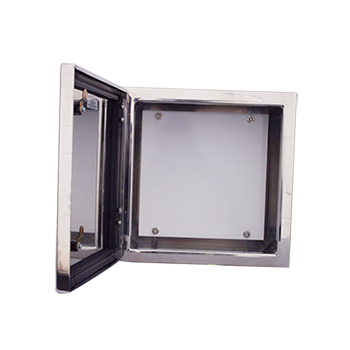

THSS11
Height: 356 | Width: 356 | Depth: 240 | Rated: IP65
Main Features: each cabinet is complete with hinged door, gearplate, catches, earth stud and sealant. Manufactured in 18 gauge 304 Stainless Steel and polished finish.
Cabinet Body: consists of all welded corners and has troughed lip around the front perimeter. Four gearplate fixing studs are welded in the inside rear, also an earthing stud on the bottom.
Door: is supported by two hinges and is removable by lifting vertically when open. A lip is folded into the top inside edge to prevent capillary action. A PVC flame retardant sealant resistive to fungus solvent and weather is attached to the inside of the door. Two catches are mounted on each door which is opened with a screwdriver. These may be replaced with a lock and keys as an extra.
Gear Plate: is made from 4mm thick aluminium. This sturdy gearplate is ideal for drilling and tapping on when mounting components.

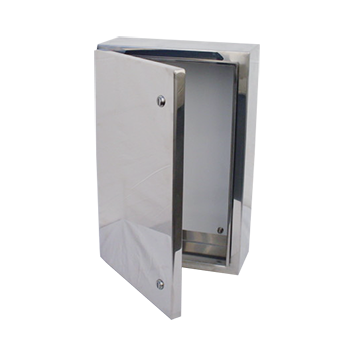

THSS12
Height: 534 | Width: 356 | Depth: 240 | Rated: IP65
Main Features: each cabinet is complete with hinged door, gearplate, catches, earth stud and sealant. Manufactured in 18 gauge 304 Stainless Steel and polished finish.
Cabinet Body: consists of all welded corners and has troughed lip around the front perimeter. Four gearplate fixing studs are welded in the inside rear, also an earthing stud on the bottom.
Door: is supported by two hinges and is removable by lifting vertically when open. A lip is folded into the top inside edge to prevent capillary action. A PVC flame retardant sealant resistive to fungus solvent and weather is attached to the inside of the door. Two catches are mounted on each door which is opened with a screwdriver. These may be replaced with a lock and keys as an extra.
Gear Plate: is made from 4mm thick aluminium. This sturdy gearplate is ideal for drilling and tapping on when mounting components.

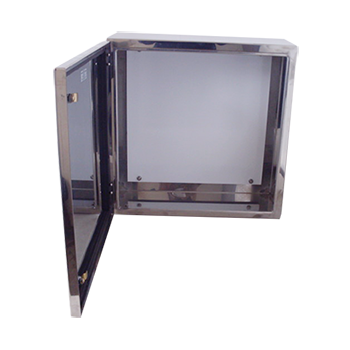

THSS18
Height: 534 | Width: 534 | Depth: 300 | Rated: IP65
Main Features: each cabinet is complete with hinged door, gearplate, catches, earth stud and sealant. Manufactured in 18 gauge 304 Stainless Steel and polished finish.
Cabinet Body: consists of all welded corners and has troughed lip around the front perimeter. Four gearplate fixing studs are welded in the inside rear, also an earthing stud on the bottom.
Door: is supported by two hinges and is removable by lifting vertically when open. A lip is folded into the top inside edge to prevent capillary action. A PVC flame retardant sealant resistive to fungus solvent and weather is attached to the inside of the door. Two catches are mounted on each door which is opened with a screwdriver. These may be replaced with a lock and keys as an extra.
Gear Plate: is made from 4mm thick aluminium. This sturdy gearplate is ideal for drilling and tapping on when mounting components.

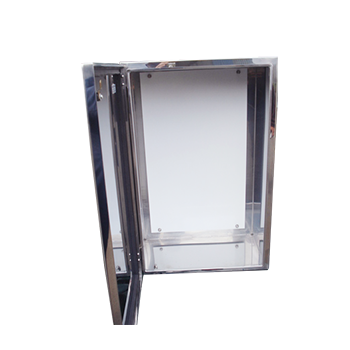

THSS20
Height: 787 | Width: 508 | Depth: 300 | Rated: IP65
Main Features: each cabinet is complete with hinged door, gearplate, catches, earth stud and sealant. Manufactured in 18 gauge 304 Stainless Steel and polished finish.
Cabinet Body: consists of all welded corners and has troughed lip around the front perimeter. Four gearplate fixing studs are welded in the inside rear, also an earthing stud on the bottom.
Door: is supported by two hinges and is removable by lifting vertically when open. A lip is folded into the top inside edge to prevent capillary action. A PVC flame retardant sealant resistive to fungus solvent and weather is attached to the inside of the door. Two catches are mounted on each door which is opened with a screwdriver. These may be replaced with a lock and keys as an extra.
Gear Plate: is made from 4mm thick aluminium. This sturdy gearplate is ideal for drilling and tapping on when mounting components.

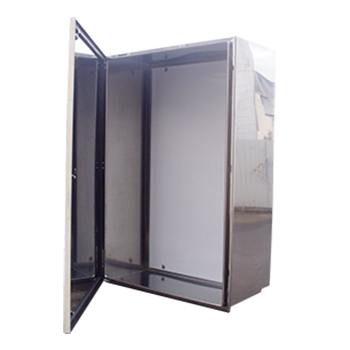

THSS22
Height: 1168 | Width: 795 | Depth: 350 | Rated: IP65
Main Features: each cabinet is complete with hinged door, gearplate, catches, earth stud and sealant. Manufactured in 16 gauge 304 Stainless Steel and polished finish.
Cabinet Body: consists of all welded corners and has troughed lip around the front perimeter. Four gearplate fixing studs are welded in the inside rear, also an earthing stud on the bottom.
Door: is supported by three hinges and is removable by lifting vertically when open. A lip is folded into the top inside edge to prevent capillary action. A PVC flame retardant sealant resistive to fungus solvent and weather is attached to the inside of the door. Three catches are mounted on each door which is opened with a screwdriver. These may be replaced with a lock and keys as an extra.
Gear Plate: is made from 4mm thick aluminium. This sturdy gearplate is ideal for drilling and tapping on when mounting components.
